In the event that you have a sync query but there are no failures in your sync report, you may wish to run the associated service manually. To do this, follow the steps on this page.
Information on this page is for admin users only - screens shown here are not available to general users.
Step 1 Access the services page.
Please see accessing services if you're not sure how to get to this point.

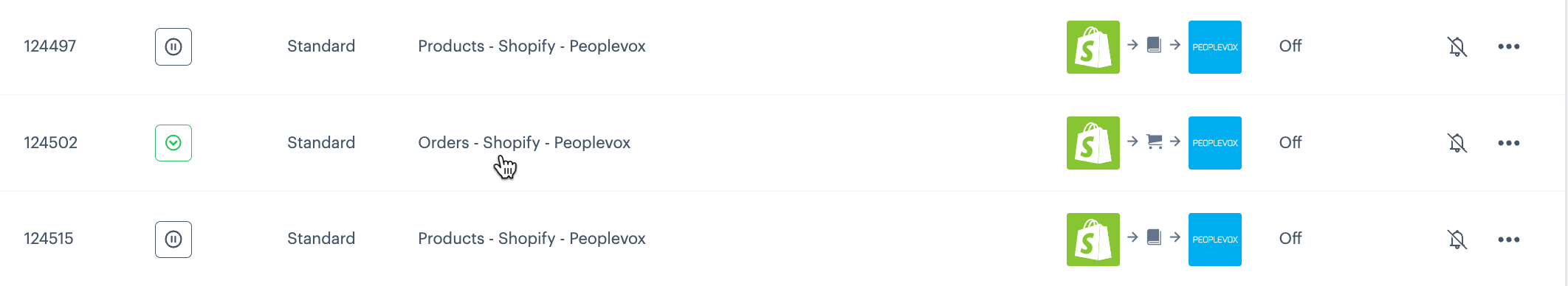

Step 2 Select the required service:

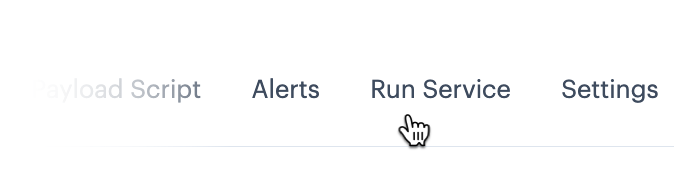

Step 3 Select the run service tab:
This tab is only available to admin users, for active services.

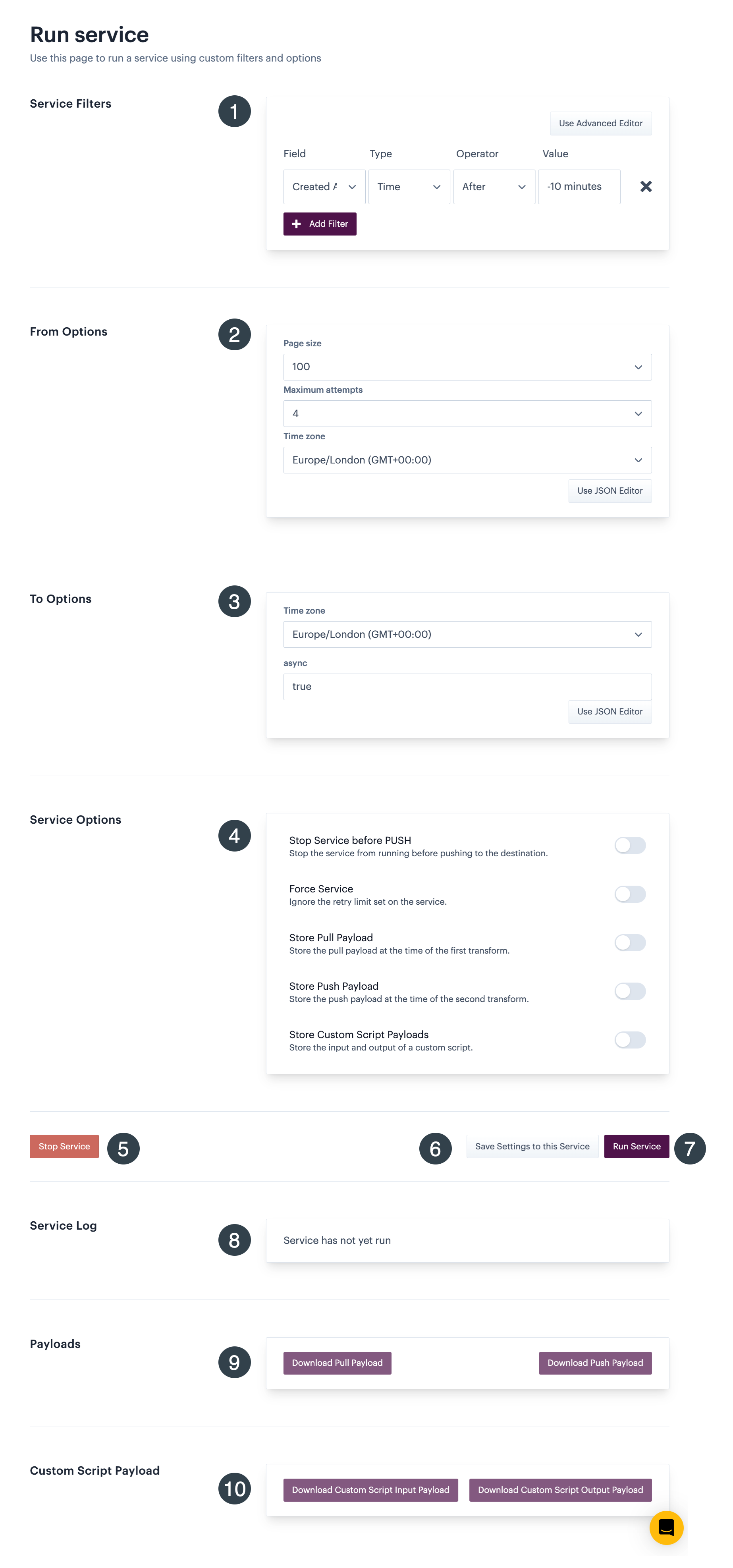

...the run service page is displayed:
Step 4 A range of options is available in different panels so you can control how this sync is run - set these as required. Key areas are highlighted in the screenshot above and summarised below:
1
Service filters
2
From options
Define settings relating to the service source - i.e. the 'pull' operation:
Page size. Correlates to any pagination requirements the source system's API may have. If in doubt, leave as the default.
Maximum attempts. Determines the number of times entries identified as duplicates and set to a status of 'failed' or 'pending' will be retried.
Time zone. The expected timezone associated with source data.
Use JSON editor. If required settings are not available in dropdown lists here, custom settings can be added via the JSON editor.
3
To options
Define settings relating to the service destination - i.e. the 'push' operation:
Time zone. The expected timezone associated with destination data.
Use JSON editor. If required settings are not available in dropdown lists here, custom settings can be added via the JSON editor.
4
Service options
These options are most likely to be used (or suggested) by the Patchworks support team, for troubleshooting a sync issue:
Stop service before push. Allows a 'pull' operation to be completed and the payload reviewed, without updating the destination system.
Force service. Run the service, irrespective of any retry limits which otherwise prevent another sync.
Store pull payload. Make the payload generated from the 'pull' operation available to download once the service has run.
Store push payload. Make the payload generated from the 'push' operation available to download once the service has run.
Store custom script payloads. Make the payload generated from the associated custom script available to download once the service has run.
5
Stop service
Use this button to stop a service that is currently running.
6
Save settings to this service
Use this button to apply from options and to options defined here to any scheduled syncs going forward.
7
Run service
Use this button to run the service.
8
Service log
9
Payloads
If you previously set options to store pull payload and/or store push payload, one or both of these buttons becomes active when the service run is completed.
10
Custom script payload
If you previously set the option to store custom script payload, this button becomes active when the service run is completed.
Step 5 When you're ready, click the run service button.
Any update may not be immediate as this run needs to take its place in the processing queue.
When you exit from this page, current settings, logs and download options are cleared - make sure you have what you need before navigating elsewhere.
Payloads are stored in an S3 bucket within a Patchworks AWS instance, for 24 hours.
Having exited the run service page, you can access these files via links in the service log. These links remain active for 24 hours after the service run is completed.
Remember that all settings, logs and download options are cleared when you exit the page.
Payloads are downloaded as a zip file containing the raw, translated payload.
The service log shows the status of the run that was just completed.
Any filters are shown here by default. If required, you can change these settings. Available filters vary by source system however, you can always filter by ID. This is useful if you need to run the service for a specific item (e.g. an order, product, customer, stock item, etc.). Unless you choose otherwise (by using the save settings to this service option), these filters will only apply when the service is run from this tab.
For further information please see the section below.
Shows the status of this run. If auto-refresh is switched on (the default state) the log updates every five seconds, giving a live view of the sync. For further information about logs, please see the page.
