Accessing your process flows

Introduction

All work with process flows starts from your manage process flows page:

Available information and options are summarised in the sections below.

Accessing your process flow list

To access the manage your flows page, follow the steps below.

1

Log in to the Patchworks

If you haven't done so already, log in to the Patchworks dashboard.

2

Access process flows

Select process flows ➤ process flows from the left-hand navigation menu:

Understanding the process flows page

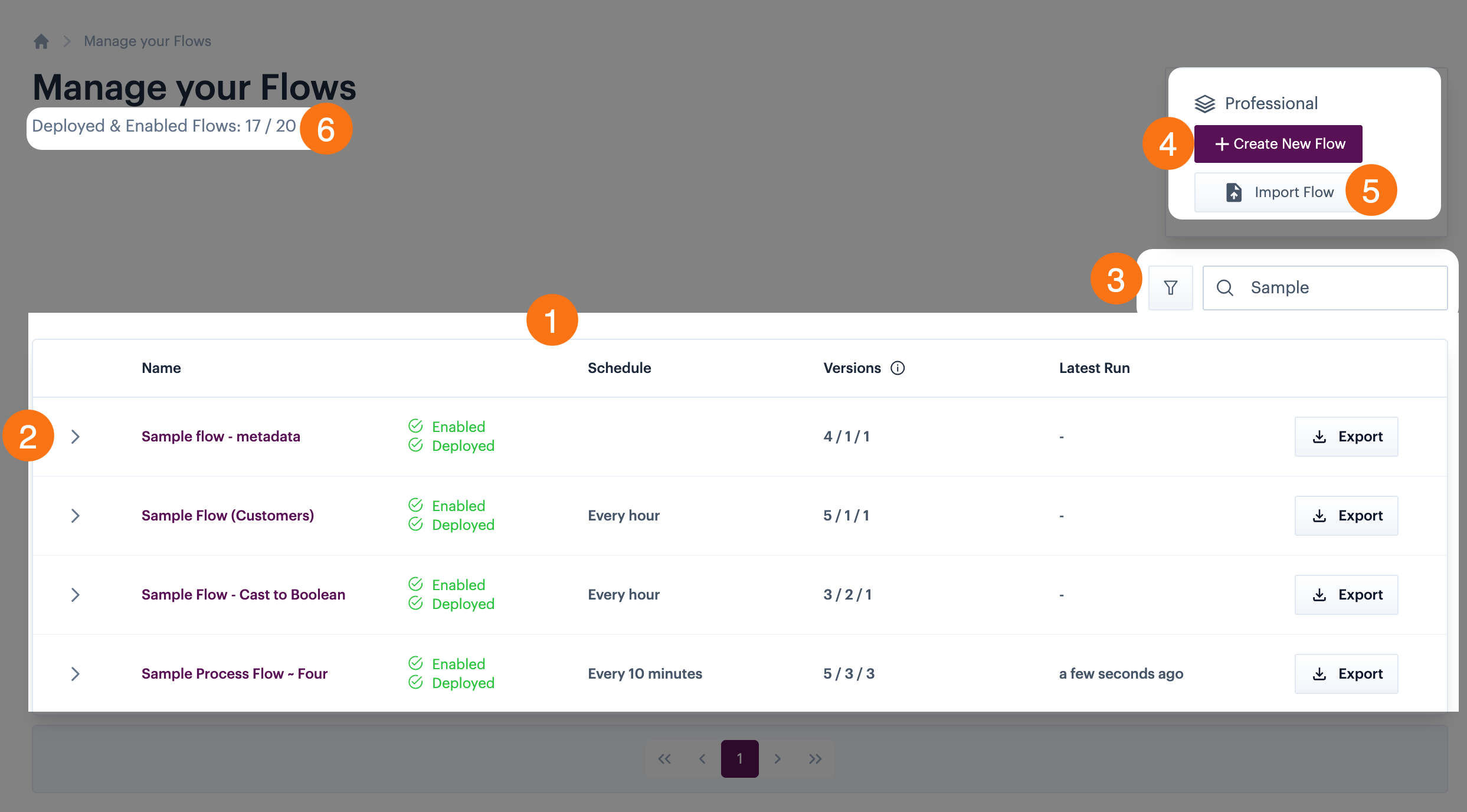

The manage your flows page displays all process flows created for your company profile, with associated information and options:

Key details are summarised below:

The process flow list

The process flow list displays one entry for each process flow, with summary information shown in columns. These columns are summarised below.

The information shown may vary, depending on whether the virtual environments feature is enabled for your company profile. Where applicable, variations are noted.

Column
Summary (virtual environments disabled)
Variations if virtual environments enabled

Name

The name of the process flow is displayed as a hyperlink. Click this link to open the process flow on the canvas

-

Status

Shows the enabled and deployed status of the process flow.

-

Schedule

Shows trigger shape summary information for the current deployed version. If no deployed version exists, details for the current draft version are shown.

Shows trigger shape summary information for the latest deployed version. If no deployed version exists, details for the current draft version are shown.

Versions

Shows the total number of versions for the process flow / the number of versions that are deployed.

Shows the total number of versions for the process flow / the number of versions that are deployed / the number of versions that are enabled.

Latest run

The date/time that the process flow was last run (shows the time only for the current day).

-

Search & filter options

As your list of process flows increases, it may be useful to find particular flows (or groups of flows) using filters and/or search options:

Filtering the process flow list

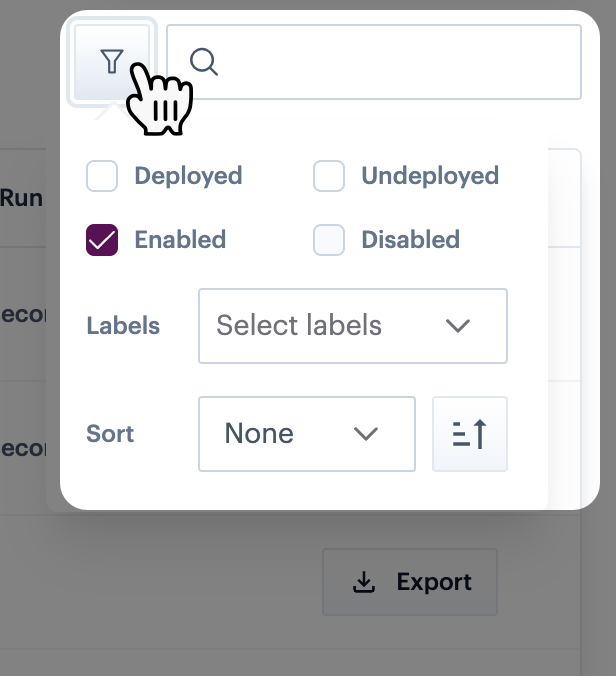

Click the filter icon to select filters based on flow status and/or labels:

Available filters are summarised below:

Status filters behave slightly differently if the virtual environments feature is enabled for your company profile, since a single process flow can have multiple versions with different statuses. For more information, please refer to Understanding flow versioning for virtual environments.

Filter
Summary (virtual environments disabled)
Variations if virtual environments enabled

Deployed

Returns process flows that are currently deployed.

Returns process flows with at least one deployed version.

Undeployed

Returns process flows that are not currently deployed.

Returns process flows where there is no deployed version.

Enabled

Returns process flows that are currently enabled.

Returns process flows with at least one enabled version.

Disabled

Returns process flows that are currently disabled.

Returns process flows where there is no enabled version.

Labels

Returns process flows associated with the selected label(s).

-

Searching the process flow list

You can use the search field to search for process flows by name - just enter a string value to be matched anywhere in the process flow name.

For example, searching for 3 would return flows named Sample Process Flow 3 and also Sample Process Flow 13:

Filters and search work together; if a filter is applied and you enter a search term, the search is performed on filtered results.

Process flow version details

Each process flow entry is associated with an arrow, for example:

Click this arrow to view version details for the associated process flow. The information shown varies, depending on whether virtual environments are in use.

Virtual environments not in use

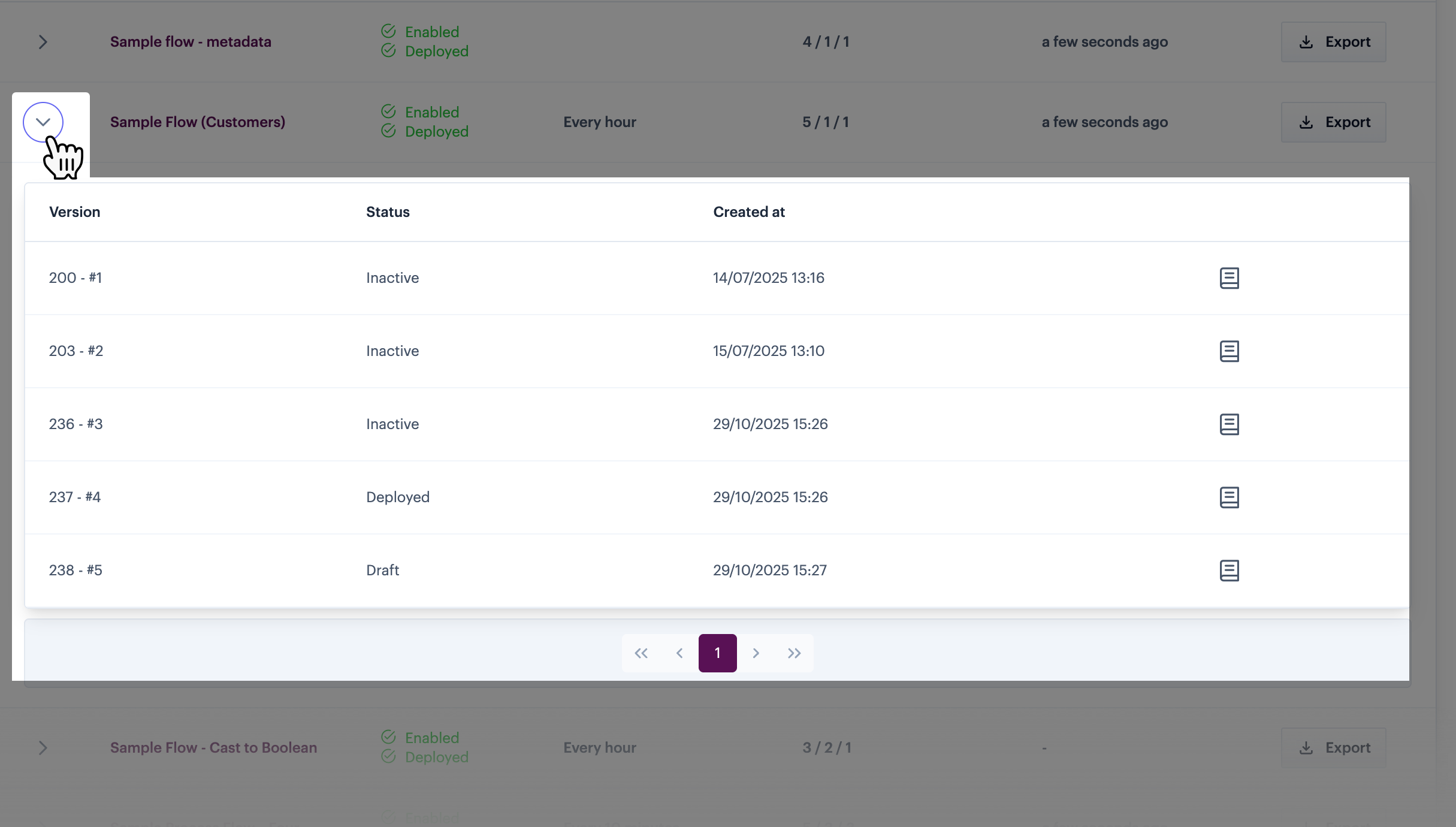

If the virtual environments feature is NOT enabled for your company profile, each version of the flow is listed, for example:

Here, you can see:

Column
Summary

Version

The version number and unique id.

Status

The current status of this version. Without virtual environments, a process flow will only ever have one deployed version, one draft, and (where applicable) multiple inactive versions. For more information, please refer to Process flow versioning.

Deployed by

If the version status is deployed, the date and time of the deployment is shown, together with the Patchworks username of the person who completed the deployment.

Created at

The date and time that the version was created.

Virtual environments in use

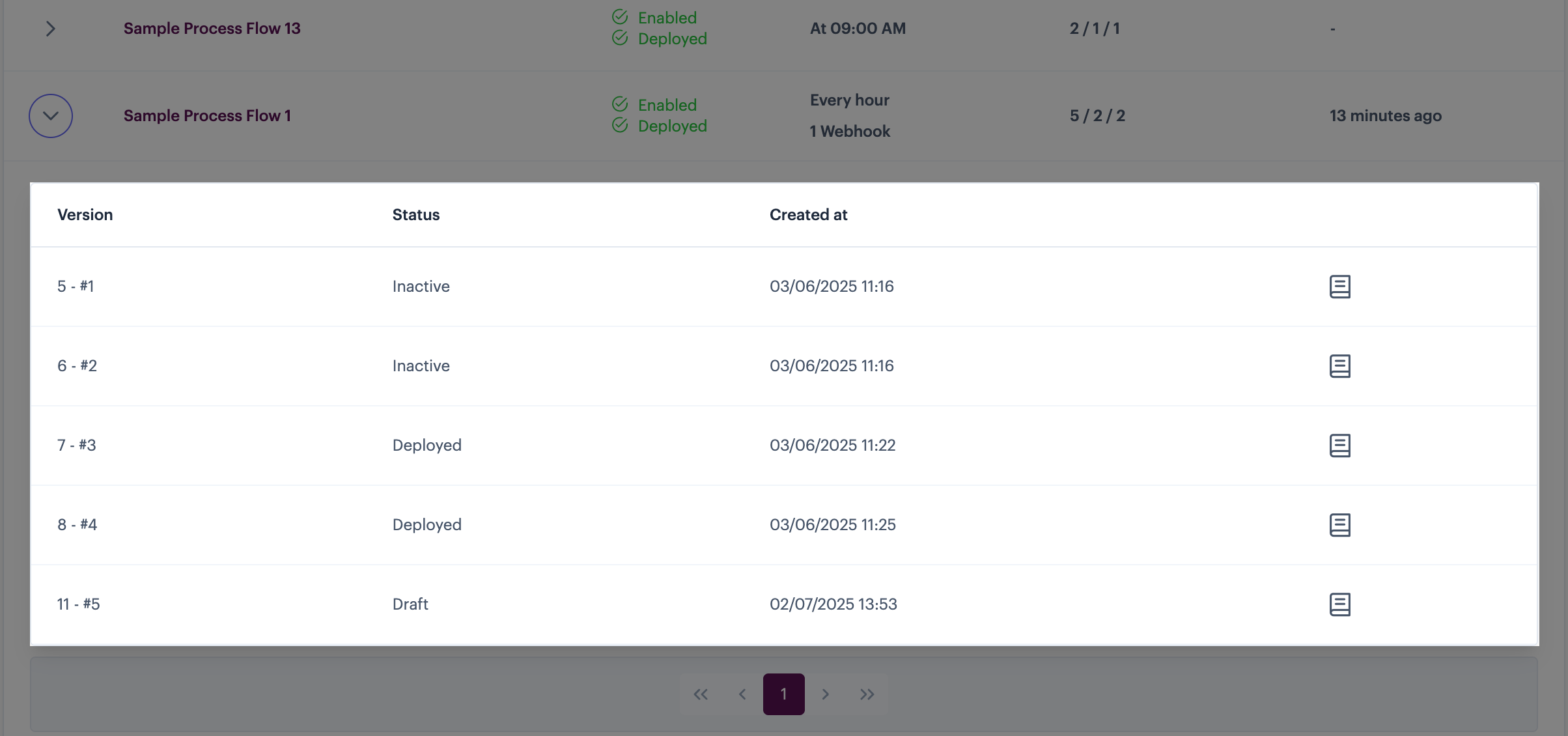

If the virtual environments feature IS enabled for your company profile, each version of the flow is listed - for example:

Here, you can see:

Column
Summary

Version

The version number and unique id.

Status

The current status of this version. With virtual environments, a process flow might have multiple deployed versions, one draft, and (where applicable) multiple inactive versions. For more information, please refer to Understanding flow versioning for virtual environments.

Created at

The date and time that the version was created.

Deployment details icon

Click the deployment details icon to view deployment information for the selected version. If the version has been deployed at any time, you can see where (i.e. to which virtual environment) the deployment was made - for example:

Create new flow

Use the create new flow button to start building a new process flow:

Deployed flows count

Each core subscription tier is associated with an allowed number of deployed process flows:

In this context, a deployed process flow is a process flow that is both deployed AND enabled.
